उत्पाद विवरण:
|

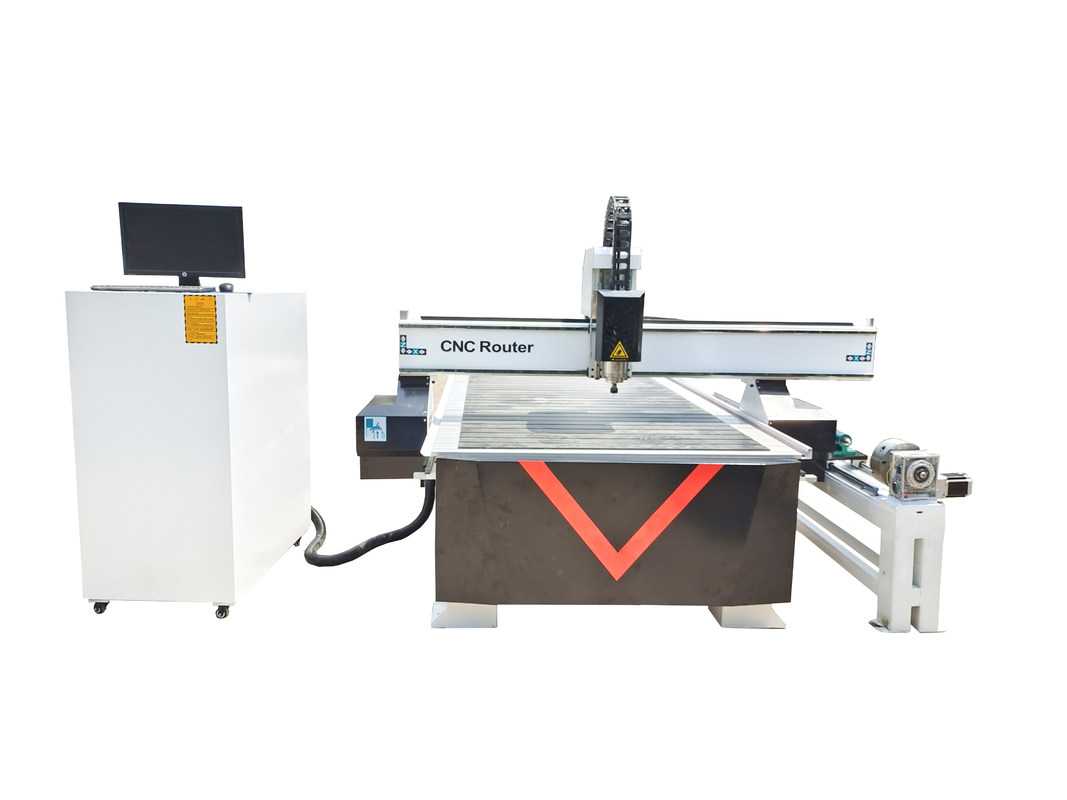

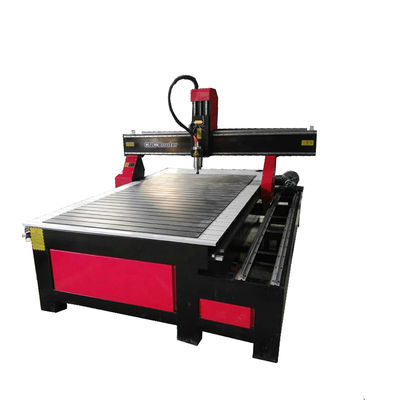

| प्रोडक्ट का नाम: | रोटरी फर्नीचर लकड़ी बनाने सीएनसी रूटर काटने की मशीन की कीमत | धुरा: | 3.2kw वाटर कूलिंग स्पिंडल |
|---|---|---|---|
| नियंत्रण प्रणाली: | डीएसपी A18S नियंत्रण प्रणाली | कार्य क्षेत्र: | 1300 * 2500 मिमी |
| हस्तांतरण: | ताइवान टीबीआई बॉल स्क्रू | गाइड रेल: | रैखिक स्क्वायर गाइड रेल |
| कार्यरत वोल्टेज: | AC220V / 50 हर्ट्ज | OEM / ओडीएम: | हाँ |
Applications:
1. Woodworking industry Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration wood crafts; gift box; jewelry box
5. Others Relief sculpture and 3D engraving and Cylindrical object.
Machine Parameter
| Control system | DSP A18S controller |
| Spindle | 3.2kw water Cooling spindle 24000rpm |
| Table | T Slot |
| Motor | 450B step motor (Chuangwei) |
| Driving system | 860H driver |
| X, Y Axis structure | 1.5M helical rack |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Chinese 20mm linear rails |
| Inverter | Best Brand 3.7kw |
| Machine working size | X Axis-1300mm ,Y Axis-2500mm ,Z Axis-350mm |
| Machine Size | Length 3150mm ,Wide 2280mm ,High 1780mm |
| Machine Max.travel speed | 22m/min |
| Machine Max.working speed | 18m/min |
| Machine Voltage | 1PH ,220V ,50/60HZ |
| Machine weight | 1455kg |
Machine advantage
|
Controller from DSP A18S. |
|
Design made by steel 8mm&6mm. |
|
20mm Guide way from Hiwin |
|
Tools sensor for original point setting. |
|
Inverter Brand Changsha BEST, driver brand Leadshine 860H. |
|
Rotary can add additional if necessary. |
|
CCD camera and oscillating cutting head can be added optional. |
|
Some accessory send with machine free. |
